General Information:
- Brand: TP-Link
- Model: TP-Link Archer AX20
- Router Type: Wireless & Ethernet
- Part No: AX20
Hardware:
- Data Transfer Rate (Wi-Fi): 1800 Mbps
- Wi-Fi Network Standards: IEEE 802.11b, g, n, a, ac, ax (Wi-Fi 6)
- LAN Network Standard: 10/100/1000
- WAN Network Standard: 10/100/1000
- Data Transfer Rate (LAN): 1000 Mbps
- CPU: 1.5 GHz quad-core processor

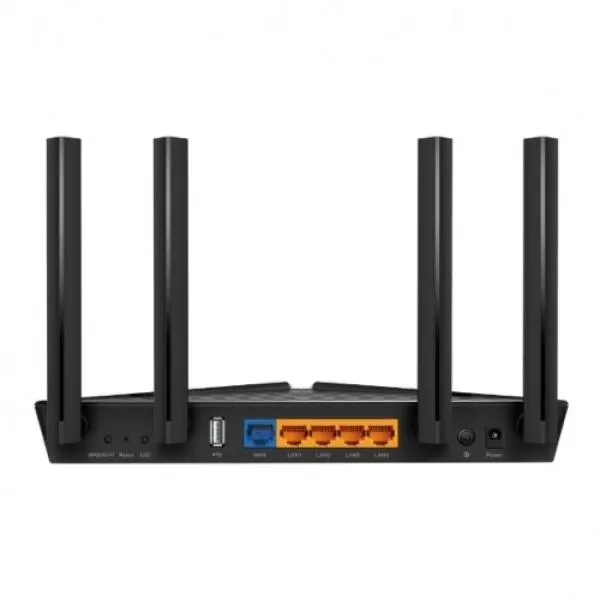

- Interface(s): 1 x WAN, 4 x LAN, 1 x USB 2.0
- Number of WAN Port: 1
- Number of LAN Port: 4
- USB Interface: 1 x USB 2.0
- USB Interface Application: Shares files & media
Internet Connectivity:
- WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Wi-Fi Generation: Wi-Fi 6
- Band: Dual
- Wi-Fi Coverage (Approximate): Up to 1500 sq. ft.
- Number of Concurrent Users: Up to 20 User Connections
Performance:
- Mesh Technology: No
- MIMO Technology: Yes
Security:
- Operating Frequency: 2.4 GHz, 5 GHz
- Security Protocols: WPA, WPA2, WPA3
- Firewall Protocols: SPI Firewall
OS Compatibility:
- Windows: 7, 8, 8.1, 10, Vista, XP, 2000, NT, 98SE
- MAC OS, NetWare, UNIX or Linux
- Browsers: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browsers
- VPN Support: No
- Voice Assistant: No
- Built-in Antivirus: Yes
Electrical:
- Power: 12V - 1.5A
- Operating Temperature: 0°C - 40°C
- Storage Temperature: -40°C - 70°C
- Operating Humidity: 10% - 90% Non-Condensing
- Storage Humidity: 5% - 90% Non-Condensing
Physical Description:
- Wall Mountable: Yes
- Button: WPS/Wi-Fi, Reset, Power, LED
- LED Indicators: Yes
- Dimensions: 260.2 x 135.0 x 38.6mm
- Color: Black
Warranty:
- Warranty Details: 1 Year (Without Adapter)
Additional Features:
- Dual-Band Wi-Fi 6: Equipped with Wi-Fi 6 technology for faster speeds, greater capacity, and reduced network congestion.
- Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming with Wi-Fi speeds of 1.8 Gbps.
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using OFDMA technology, reducing lag.
- Quad-Core Processing: A 1.5 GHz quad-core CPU ensures smooth communication between the router and connected devices.
- Extensive Coverage: Beamforming, independent FEM, and four antennas provide focused reception to devices far away.
Others:
- External Power Supply: 12 V / 1.5 A
- Wireless Functions: Enable/Disable Wireless Radio, DFS (JP Version Only), Guest Network, MU-MIMO, OFDMA
- WAN Type: Dynamic IP/Static IP/PPPoE
- Dynamic DNS: DynDns, NO-IP
- Version: US Version 1.0
Certifications:
- FCC, CE, RoHS
Country Of Origin:
- China
Made in/ Assemble:
- China
